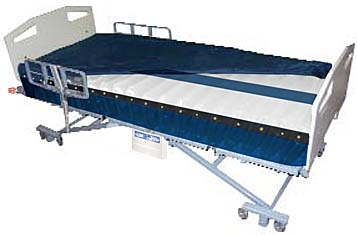

The fully integrated electric bed system features fully electric DC motors, Reverse Trendelenburg, Trendelenburg, High/Low and Cardio position. Bed deck is 7” in low position and 30” in high. The bed has a battery back-up and two side rails.
Bladders:Ventilated low air loss cells have air holes throughout the mattress to helpminimize skin maceration by reducing excess moisture under patient. Ventilated bladders assist in the prevention and treatment of pressure ulcers. Air cells are constructed of TPU thermal polyurethane material. Dual bladder design prevents patients from bottoming out, while sitting up and will maintain air during power outages.
Hose connectionsHose connections feature a transport locking device that ensures the mattress remains inflated for patient transport.CPR ValveCPR Valve quickly deflates mattress system for medical emergencies. A simple twist releases air immediately.
Blower PumpThe alternating pressure mattress blower pump is controlled by a micro-processor which allows the caregiver total control of comfort and chosen therapy. Cycle time ranges from 5 to 95 minutes. The blower pump inflates the mattress within minutes, reducing the waiting time for therapeutic treatment to begin. Optional pulsating low air loss pump Model 9511-PS allows caregivers to provide pulsating low air loss therapy.
MODEL 9500
Power-Pro™ Elite - Mattress and Pump
Dimensions:
36″ x 80″ x 9″
Weight:
23 lbs.
Air Cells:
18 – 9 ” deep cellsVentilated bladders with air holes throughout mattress
Mattress Cover:
Vyvex-III™ - Urethane coated, multi-stretch, low shear, moisture resistant / vapor permeable quilted cover. Removable, zippered cover, is anti-microbial and meets California Technical Bulletin #117 for fire-retardancy.
MODEL 9501
Power-Pro™ Elite - Pump only
17″L x 7″W x 10.5″H
12 lbs.
Electrical:
120V 60 hz
Listings:
UL® 544 Medical Equipment
Cycle Time:
5 – 95 Minutes
Air Flow:
1800 Liters per minute
Current:
5A
Ground Resistance:
0.1 ohms maximum
Power Cord:
12 ft. cord with hospital grade plug
WARRANTY
Mattress & Pump:
1 Year limited
Frame:
1 year limited
Cover:
6 months limited
ORDERING INFORMATION
Model 9400
Power Pro™ Elite Integrated Low Air Loss Bed System
Model 9511
Power Pro™ Elite Blower pump only
Model 9526-SRS
Power Pro™ replacement SRS side rail safety system
