The mattress is designed to fit all standard hospital beds. Apollo 3-Port™ support patient weights up to 350 lbs. Apollo 3-Port™ meets California Technical Bulletin #117 for fire retardancy. An optional fire barrier is available to meet the most stringent fire safety requirements when requested.
Bladders: Ventilated bladders low air loss include 40 air holes in sacral and torso areas to help minimize skin maceration by reducing excess moisture under patient. Ventilated bladders assist with the prevention and treatment of pressure ulcers. Air cells are constructed of (TPU) thermal polyurethane, laminated to a medical grade nylon. Dual bladder design prevents patients from bottoming out, while sitting up and will maintain air during power outages. Optional 4 bladder heel section provides advanced dynamic therapy specific to the prevention and treatment of heel ulcers.
CPR Valve: CPR Valve quickly deflates mattress system for medical emergencies.Cover: Vyvex-III™ multi-directional stretch fabrictransfers moisture away from the patient’s skin. The cover is low shear, washable, anti-microbial, fluid resistant and fire retardant. Cover is loose fitting and will conform to the patient.Side Rail System for Patient Safety: Shown with optional SRS, Side Rail System.

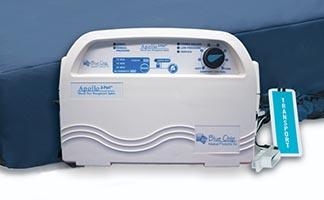

Pump Control Unit Features Unique 3-Port design provides continuous air flow to the 3″ static air base of mattress.
Alternating mode offers the benefit of alternating pressure therapy and reactive hyperemia. This helps to redistribute pressure well below 32mmHg.
Control dial adjusts mattress from soft to firm for patient comfort.
Normal Pressure Alert indicates that system is operating correctly.
Low Pressure Alert indicates that output needs to be increased for heavier patients or accidentaldisconnection of hoses.
Adjustable Pump comes with adjustable hanger brackets to secure unit to bed. fits all makes of hospital beds.
The optional blower pump Optional pump is available to quickly inflate and deflate mattress through CPR valve in under 4 minutes.
MODEL 4600
Apollo 3 Port ™ – Alternating Air Pressure Mattress with low air loss and Pump
Dimensions:
35″ x 80″ x 8 “
Weight:
18 lbs.
Air Cells:
16 – 8 ” sacs13 Alternating cells10 Ventilated cells with 40 low air loss holes3 Static cells in head section
Air Cell Option:
14, 8″ bladders & 4 4″ foot section air bladders
Mattress Cover:
Vyvex-III™ - removable zippered, low shear,moisture resistant / vapor permeable cover. Removable zippered cover, is anti-microbial and meets California TechnicalBulletin #117 for fire-retardancy.Adjustable anchor straps secures mattress to bed frame.
MODEL 4601
Apollo 3 Port ™ – Pump only
10.75″L x 7.5″W x 3.5″H
6.8 lbs.
Electrical:
120V 60 hz
Listings:
UL® 544 Medical Equipment
Cycle Time:
10 Minutes
Air Flow:
7.5 Liters per minute
Current Usage:
less than 100 micro amps
Ground Resistance:
0.1 ohms maximum
Power Cord:
12 ft. cord
Construction:
ABS fire retardant UL 94V-0
WARRANTY
Pumps:
1 Year limited
Mattress:
1 year limited
Cover:
6 months limited
ORDERING INFORMATION
Model 4600
Mattress and Pump Control unit
Model 4600-SRS
Mattress and Pump Control unit with Side Rail System
Model 4610
Pump Control Unit
Model 4620
Mattress only
Model 4622
Carry Bag with Strap
Model 9623
Electric Inflator & Deflator
Model 4624
Replacement 8″ Ventilated Bladders
Model 4625
Replacement 8″ Cell Bladders
Model 4626
Replacement Zippered Cover
Model 4626-SRS
Replacement SRS Safety Rail System
PDAC APPROVED
Medicare Code EO277
Apollo 3-Port™ meets Group 2 Support Surfaces requirements for Medicare EO277.Patient must meet all medical criteria to qualify for reimbursement.
